A new imprint in the world of advanced detectors
Smart detection and control systems (Smart Technology)
New inventions invented for you by MWF DETECTORS
Now the gold and treasures are in your hands with confidence and with less time and effort.
Note: this device it is sold in three different packages according of the
systems available in each package:
1- Standard package: Provided with the basic search system, Advanced”
Long Range System
2- Professional Package: Provided with 2 search systems Long Range System &

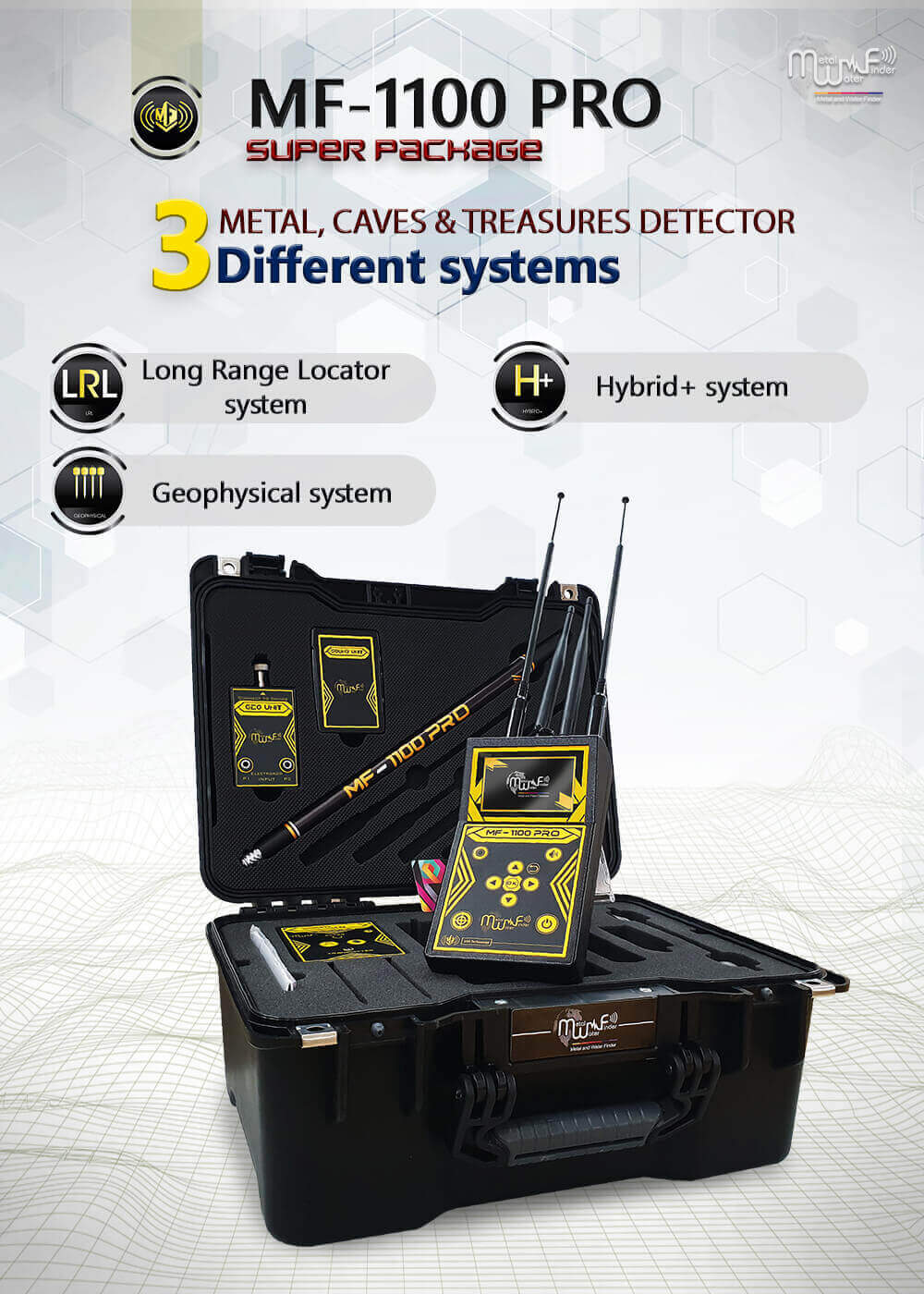

3- Super Package: Provided with 3 search systems, Long Range System & Hybrid+
system and Geophysical survey system.
- The MF-1100 PRO has great capabilities, great features and functions make it the first confidence device, to begin successful exploration operations.
- The specialized device in the search and detection of gold, treasures, metal, caves, voids, and banknotes.
- Great unmatched accuracy in specify and detection targets and confirmation the target existence 100% without any errors.
- Great speed to provide the results to the user with integrated and comprehensive data about the target and the point center.
- Internal signal filtering systems, to avoid any confusion resulting from any high ranges frequencies like radio waves are present in the air or other.
- Automatic Tuning System (ATS) Special invention and new, registered in favor of MWF GROUP, this system provides accurate results and certain in all types of soils and terrain, because the system recognizes the soil automatically, grants the search process automatic tuning commensurate with the type of soil and properties of soil, With the abolition of any overlaps radiation resulting by the rocky and mountainous territory effect, which may affect a lot of other detectors, but this smart system, can sorting and analysis and provide the necessary levels which relate of frequency signal, voltage, and wavelength of the signal which gives results free of any errors.
- TFT color screen 3.2-inch HD gives the user clear vision by night and day.
- Device locking system, the user can be the set password for the device, so cannot anyone run the device the owner only, and will be done through pin code interface.
- Control the level of screen brightness feature, which gives you adequate lighting for day or night, and reduce the level of lighting to save energy as well.
- Five levels of sound give you adequate control of sound output and signals sounds of search results, as well as vibrator mode, or silent mode and sufficiency by visual results.
- The device support with digital clock, with a time settings interface.
- For the first time globally in the detection and exploration devices exclusively at MWF Group, The device is supported with smart operating and detection systems, Smart interfaces, Power conservation system, Smart charging system, Multilanguage and remember device language, save settings, Smart control, Bluetooth technology, and factory reset, all this and more through the operating system (Bear Claw).
- Battery and charging smart feature, which gives the user accurate tracking of battery level and notices about battery level and alerts before the entry into force of power, with smart charging systems that give the user also follow up the battery charge when the device ON or OFF, and to find out the level of charging which added, all in real-time.
- Wireless headphones are working on (Wireless) can be controlled through the device settings.
- Bluetooth technology to communicate with units that require conduction with a device through Bluetooth.
- High quality and accurate performance, manufacturing this product by best elastomers, electronic components, and circuits with international standards.
- The ergonomic design and streamlined shape give you the power to search and navigate with lightweight and ease of use, which plays a big role in quick and uncomplicated results.
- Easy to work and to use anyone can use it.
- Supported this device with simple control panel, works with buttons interface, enables the user to be controlling and setting the device to search easily, the control panel consists of the following:
- ON/OFF button
- Screen Brightness control button, (external quick abbreviated)
- Volume adjust button (external quick abbreviated)
- Back button
- The joystick gives you a quick move in the device settings and functions, consisting of 4 buttons to move up, down, left, and right.
- OK button
- Tracking and target focus button
Detection systems supported with this package:

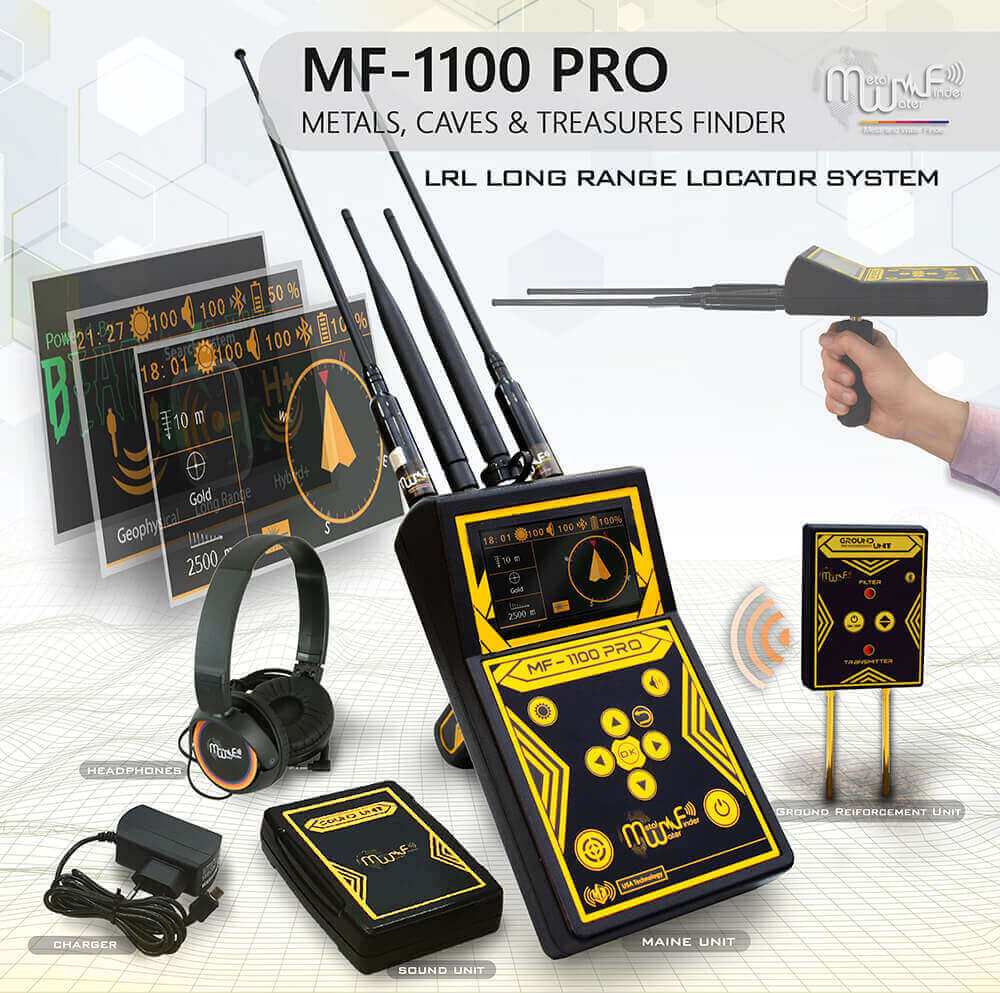

1- Advanced – Long Range Locator system:
- Many new technologies added to our long-range locator system, exclusive technology is unprecedented, this system works to detect and locate targets from far distance it directs the user and his leadership to the location of the target directly.
- Embedded system for sensing and detection, where the device can detect the targets through heading towards to target and is accompanied by acoustic alarm indicator towards the target accurately.
- Automatic smart guidance system, to locate the path and direction of the target, through a special graphics interface, where this system gives the user automatically identify and vision about the direction and location of the target.
- Smart control interface to adjust the levels, search capabilities, and the type of target you want to search for, too.
- Targets List, composed of 15 different targets can choose any target from this list to search for it separately, and targets are Gold – Diamond – Gold nuggets – Silver – Bronze – Copper – Aluminium – Lead – Tin – Nickel – Platinum – Mercury – Iron – Cave – Banknotes – Water.
- The interface of the accurate setting for search parameters, Multilevel to pre-control levels of depth and distance of the search:
- 1- Depth up to 30 meters with a control property in the signal level of the searching depths, through depths options list, and starting from 0 up to the selected depth: 1m – 3m – 5m – 7m – 10m – 15m – 20m – 25m – 30m.
- 2- Distance search up to 2500m, with a control property in the level of the front broadcast wave, through the distance options list and starting from 0 up to the selected distance: 100m – 250m – 500m – 750m – 1000m – 1250m – 1500m – 2000m – 2500m.
- The guided laser function is can be switched on or off from the system interface.
- Equipped with built-broadcast device works on two systems, signal filter system to confirm target site, and ground transmitter system to strengthen of the signal.
2- Hybrid+ system:
- It scans and verifies soil layers, checks their contents, reads levels of magnetic fields and ionic radiation at the same time to detect the locations of gold, metal, and caves underground.
- The smart interface gives you absolute clarity and integrated results about the targets.
- Accurate discrimination system between Ferrous and non-ferrous metals and cavities.
- Oscilloscope graphics imaging system to determine the size of the target.
- Advanced hybrid sensors give immediate and direct results in real-time.
- Accurate identification of the target point with a graph on the screen.
- A smart verification system, about connecting the Hybrid Sensor in the device or not.

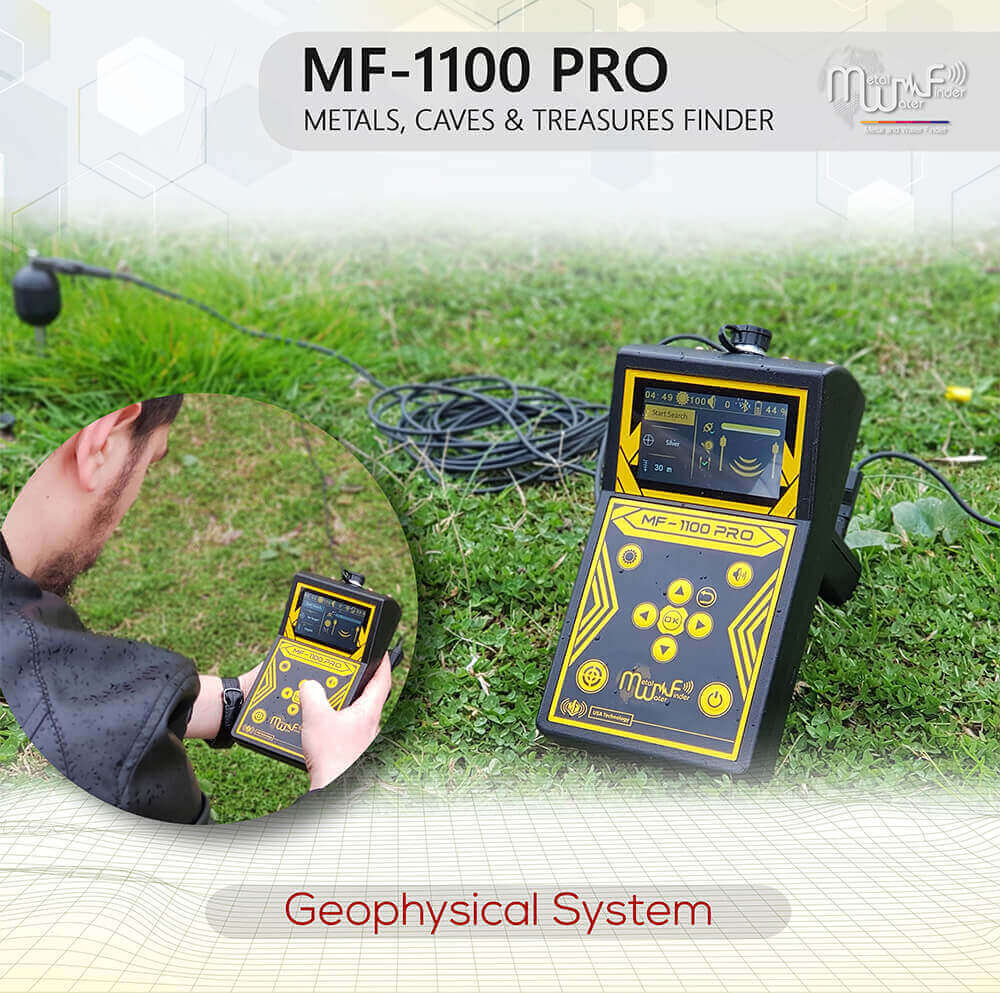

3-Geophysical Survey System:
- This system works on measuring the intensity of the soil electrical resistance and to identify substances found underground and identification, and its mission to detect and exploration for gold, metal, Caves, and voids underground with a property of accurate discrimination between the targets.
- The special display interface of this system gives the user integrated information about the search process and search steps are automatic.
- This system scans and detects the soil automatically and shows complete results about the discovered targets directly on the screen.
- Feature of automatic help messages, which appear on the screen for the user to alert on a particular command or guidance to execute a specific command.
- The system works by two electro-rod scannings only, allowing to work in this system with ease and comfortable.
- Property of determining the target depth and accurately, through a special system to identify and measure the depth of discovered target.
- Advanced Search and identification techniques, working on functions smart detection, which works on the smart systems of detection and analysis for the target location.
- Multiplier check scanning system and at the immediate time for the location, which gives the user, gives credible and proven results.
- Accurate discrimination between the target’s types, and to clarify the target, type, size, and name in the screen directly.
- The smart verification system of connecting the electrodes in the soil and by wire or non-connected and clarified it on the screen through the alerts messages.
|SEARCH SYSTEM:||1. Advanced- Long Range Locator System
2. New” Hybrid+ Search System
3. Geophysical system
|SEARCH PRINCIPLE:||1. Digital Frequency Signal Processing (DFSP) / To Receiving Electrostatic Fields of the targets
2. Detects the magnetic & ionic fields of targets and clarifies the values.
3. Automatic geophysical system for measuring the electrical resistance of the soil and analyzing it with Vertical Electrical Sounding technology.
|OPERATING PROCESSOR:||MICROCONTROLLER PIC18 & ARM 7|
|OPERATING SEARCH FREQUENCY:||1. From 1 kHz to 30 kHz
2. Special frequencies to measurement and verification
3. Measuring the intensity of electrical resistance Ohm
|POWER:||3.7V Li-ion 2000 mAh|
|POWER CONSUMPTION:||Maximum of consumption 200 mA|
|BATTERY LIFE:||6 Work hours|
|CHARGER:||5.1-volt 3 amp / Charging Time 2 hours|
|DISPLAY TYPE:||TFT Color Monitor 3.2″ , 65536 Color, 48Mhz , CDMA GPU|
|SPECIALIZED IN DETECTS:||1. Gold – Diamond – Gold nuggets – Silver – Bronze – Copper – Aluminium – Lead – Tin – Nickel – Platinum – Mercury – Iron – Cave – Banknotes – Water.
2. Ferrous and non-ferrous metal and caves and distinguish between them.
3. All metal and distinguishing between it, caves, and water also (the result of the target type appears automatically) on the system interface.
|TARGET SELECTION SYSTEM:||1. Yes, can choose the target type before starting the search from the list of targets
2. Automatically detects and shows target id
3. Automatically detects and shows target id
|DEPTH SEARCH:||30 m|
|DISTANCE SEARCH:||2500 m|
|RESULTS FEEDBACK:||1. Through orientation toward target location accompanied by sound + graphical and vibration alerts.
2. Indicators of graphical data, sound, oscilloscope, and signal strength and vibration.
3. Automatic results about the target, type, id, depth on the screen.
|AUTOMATIC SMART GUIDANCE SYSTEM:||Yes, by a graphical interface to locate the path and direction of the target, and Acoustic commands|
|OPERATING TEMPERATURE:||From -15° C to 60° C|
|STORAGE TEMPERATURE:||From -15° C to 40° C|
|HUMIDITY:||It can be stored and work in the degree rate of air humidity of level 90%.|
|WEIGHT:||Compound: 1 kg – disjointed in the bag: 3 kg|
|BAG DIMENSIONS:||40x33x17 cm|

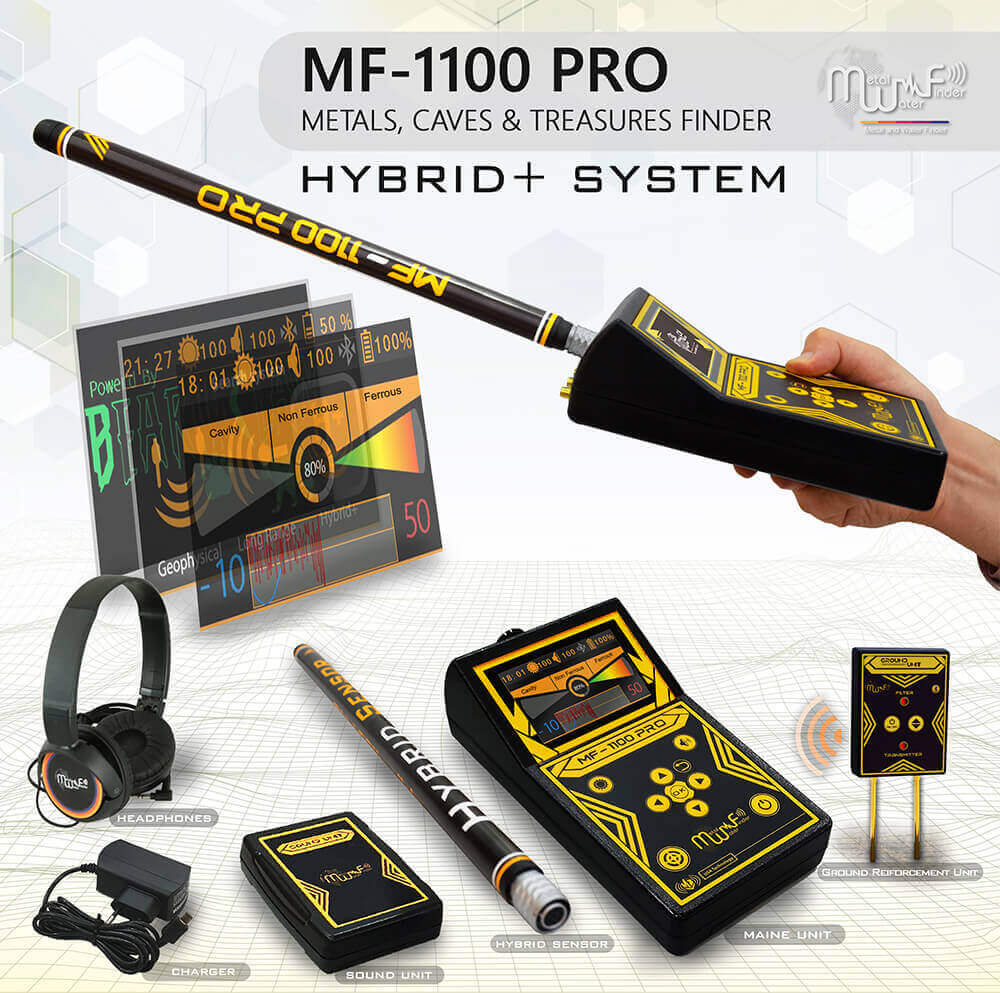

- The main unit of the device (Setting & Control Unit).

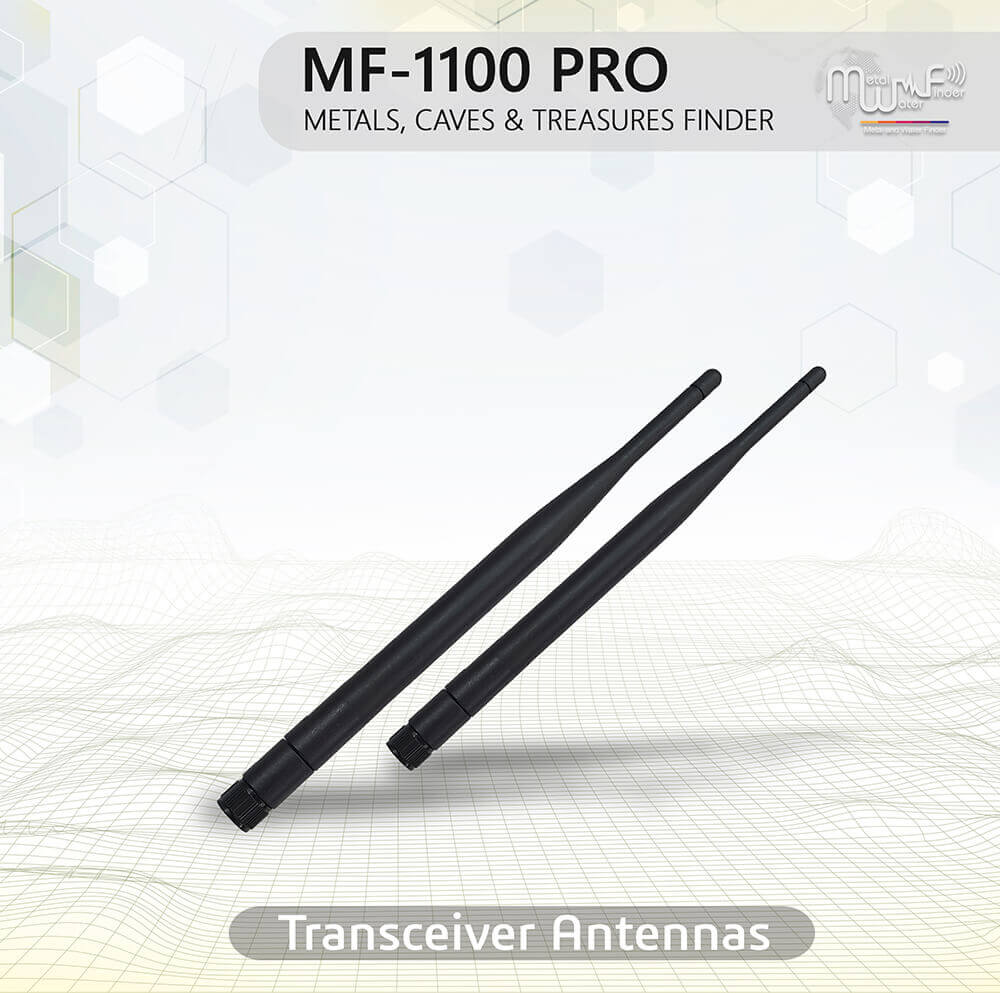

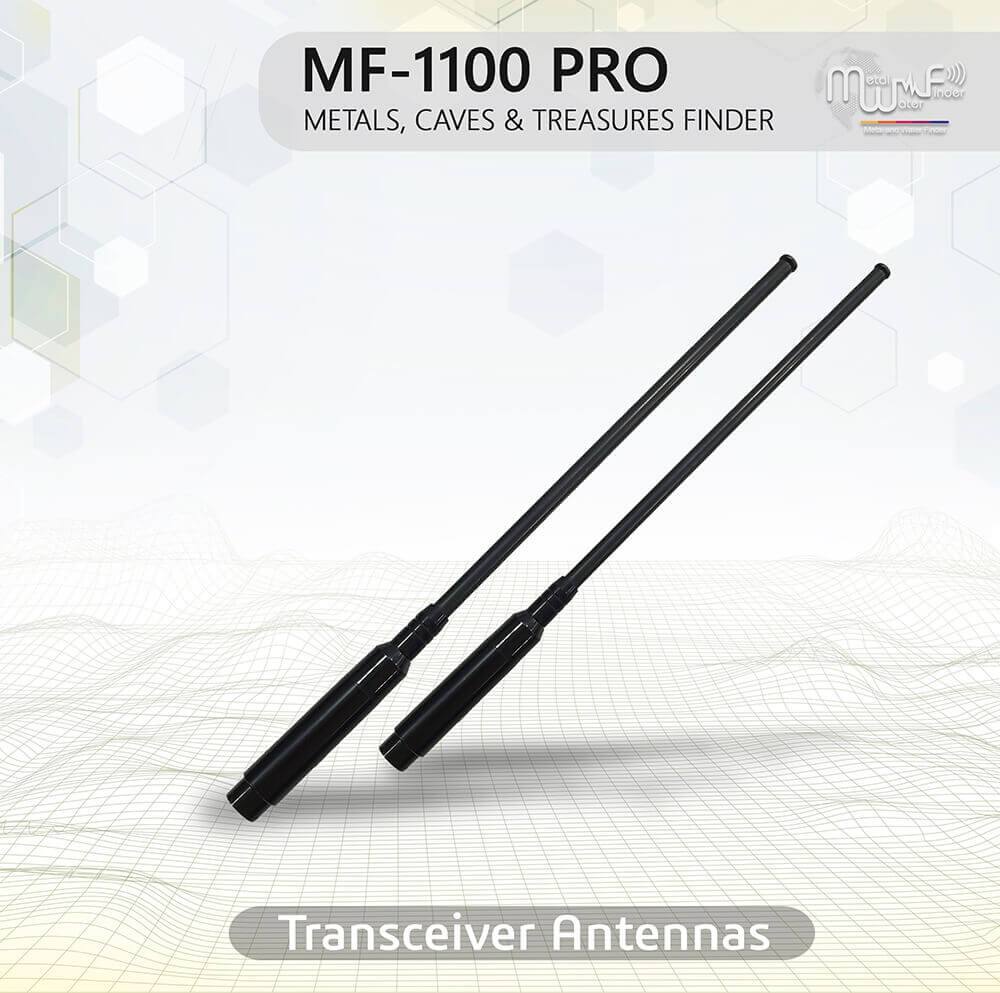

- Transceiver antenna (For LRL system).

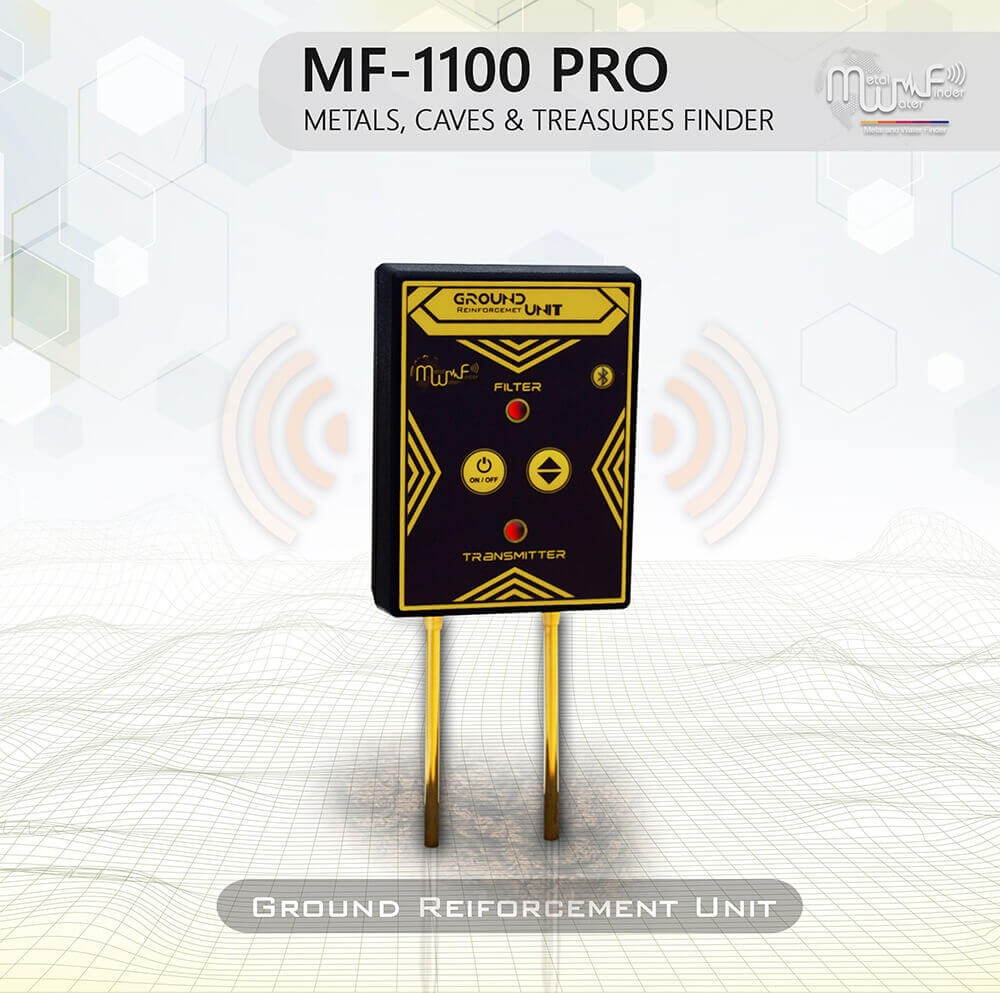

- Ground Reinforcement Unit (For LRL System).

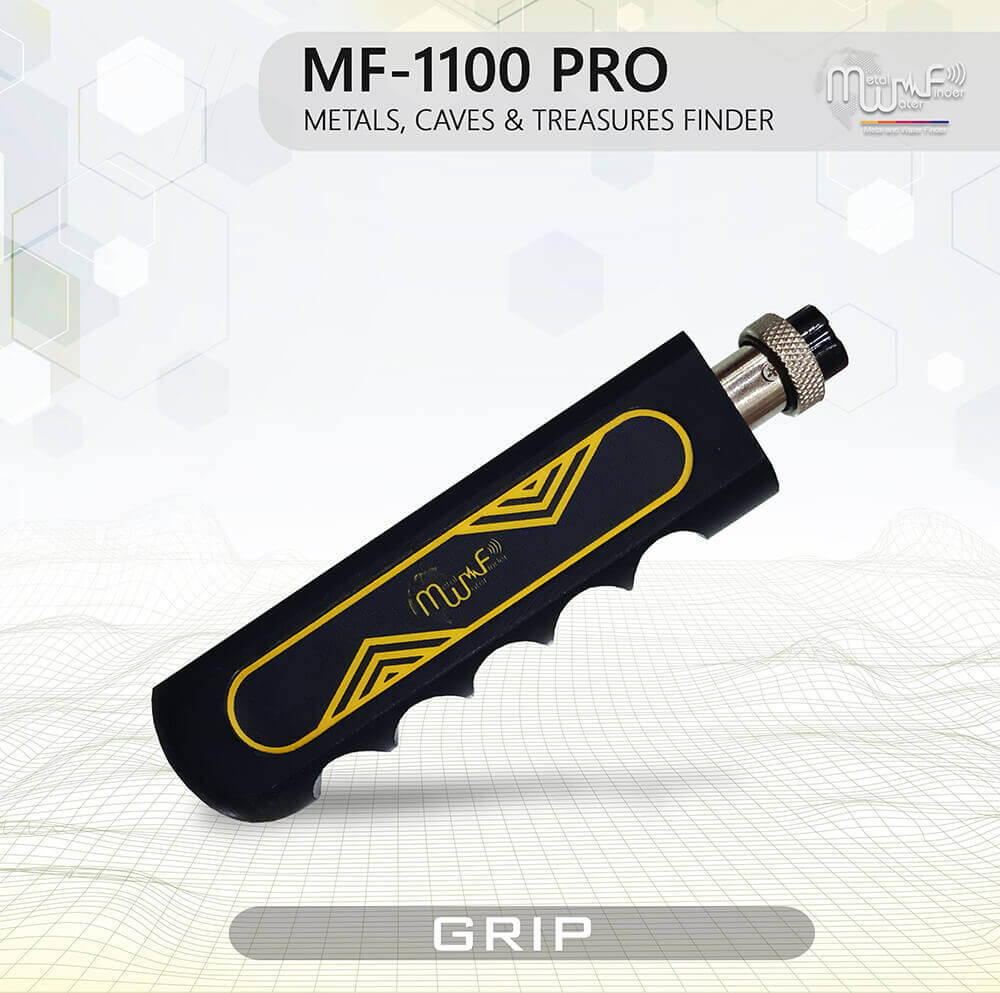

- Grip (Handle).

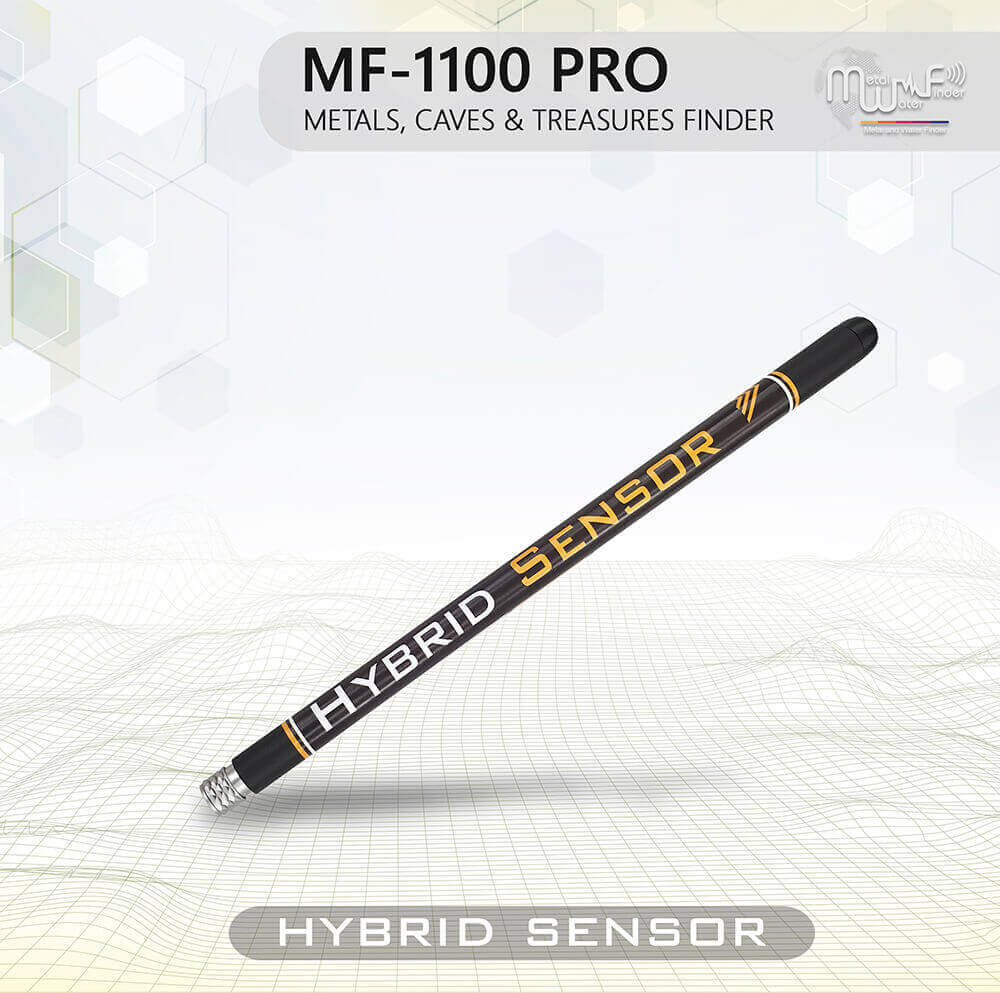

- Hybrid+ Search System Sensor Unit.

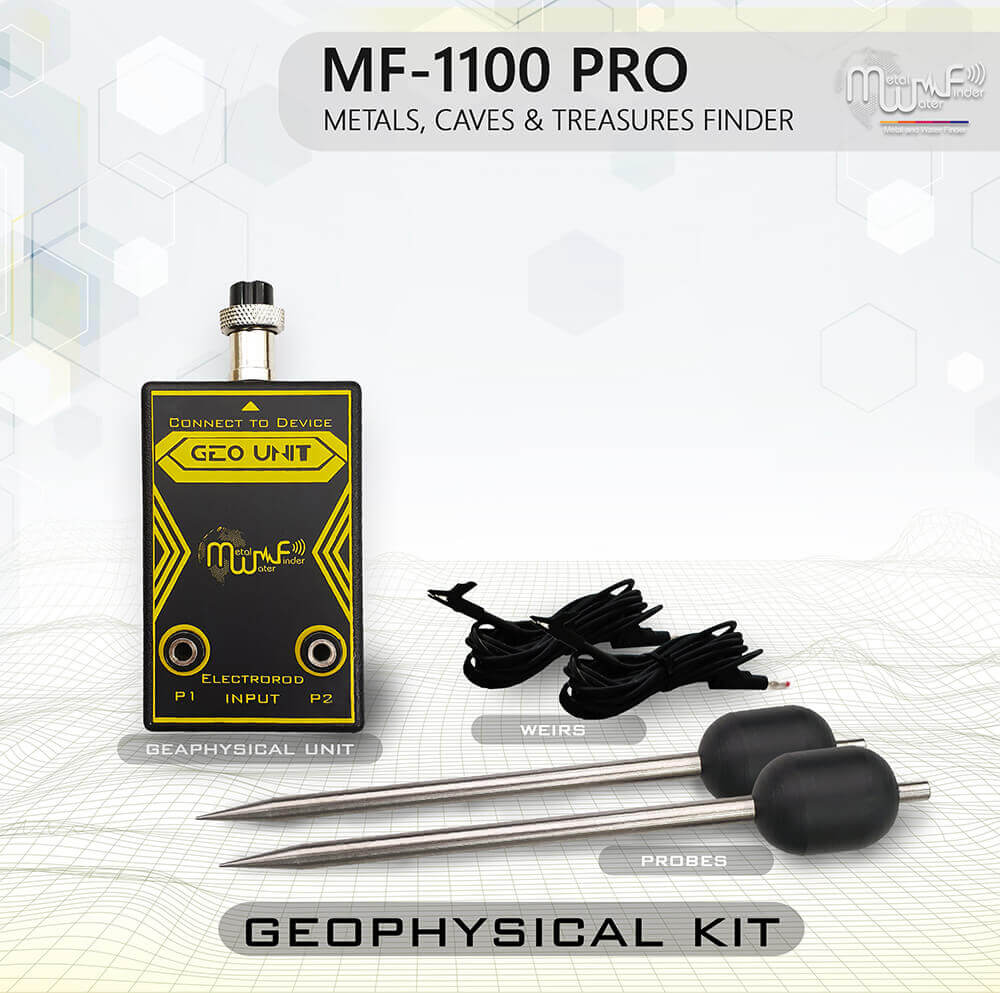

- Geophysical Search System Unit.

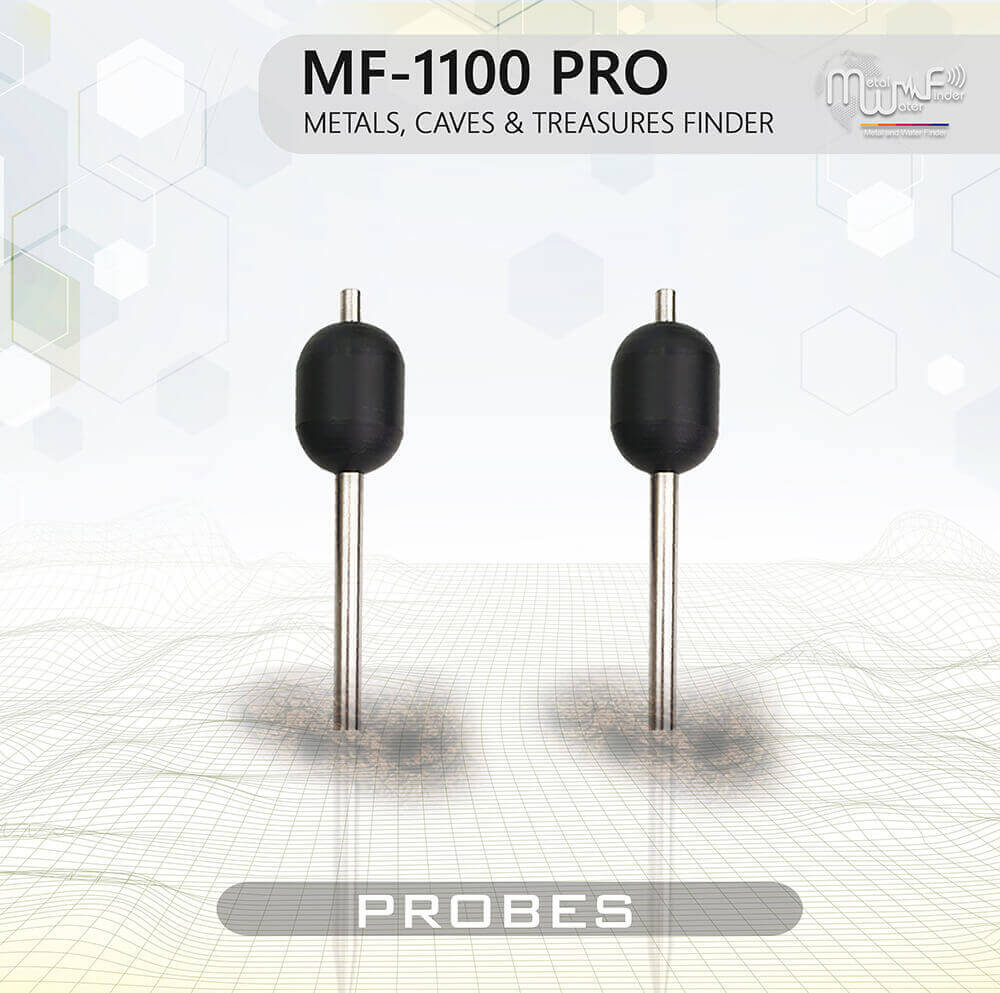

- 2 Electro-rods (Probes) For Geophysical search system.

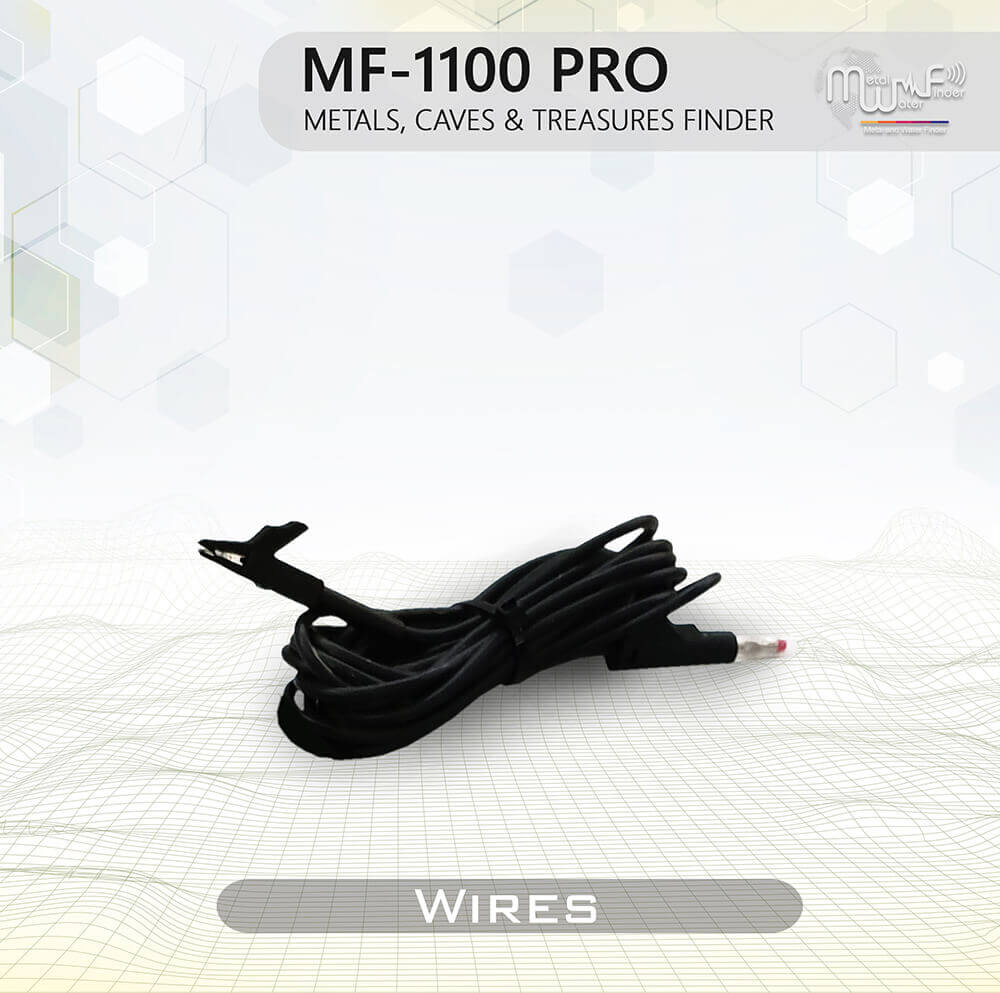

- 2 of Connection wires (For Geophysical search system).
- Device Plastic Case (Anti-shock).

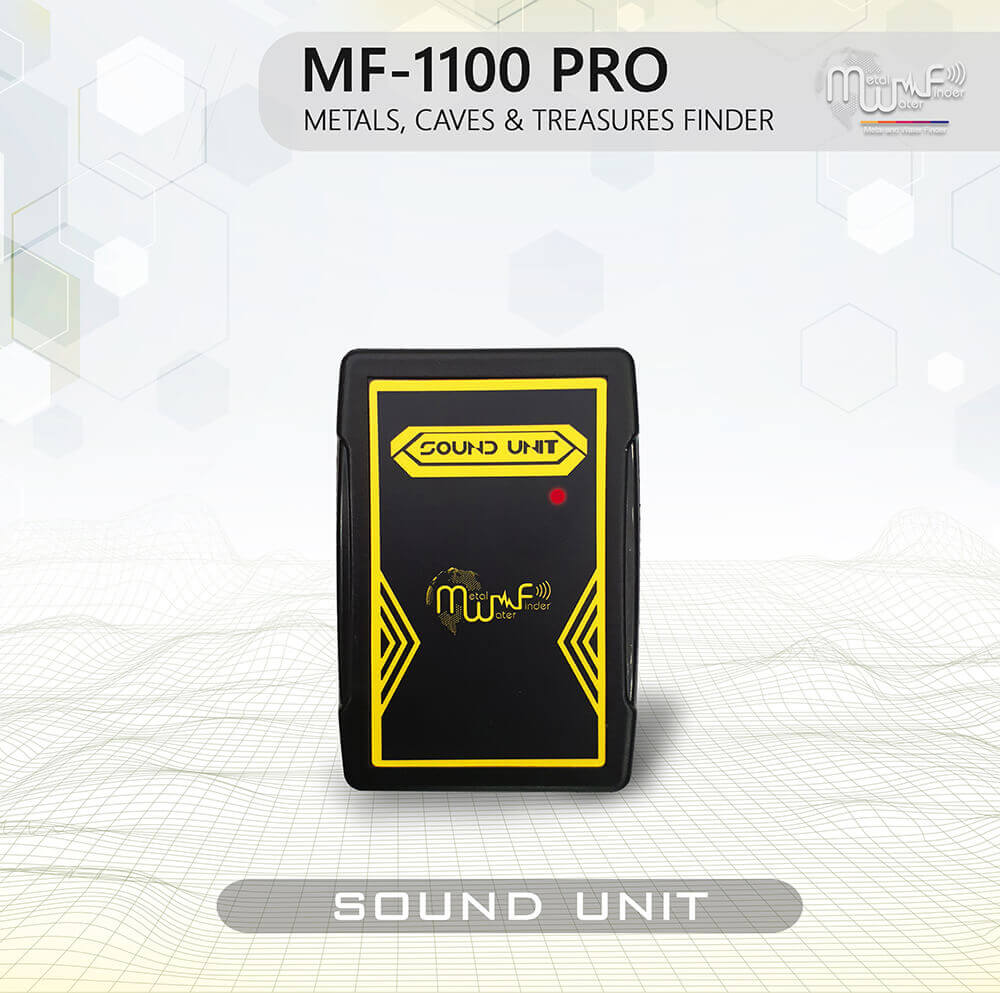

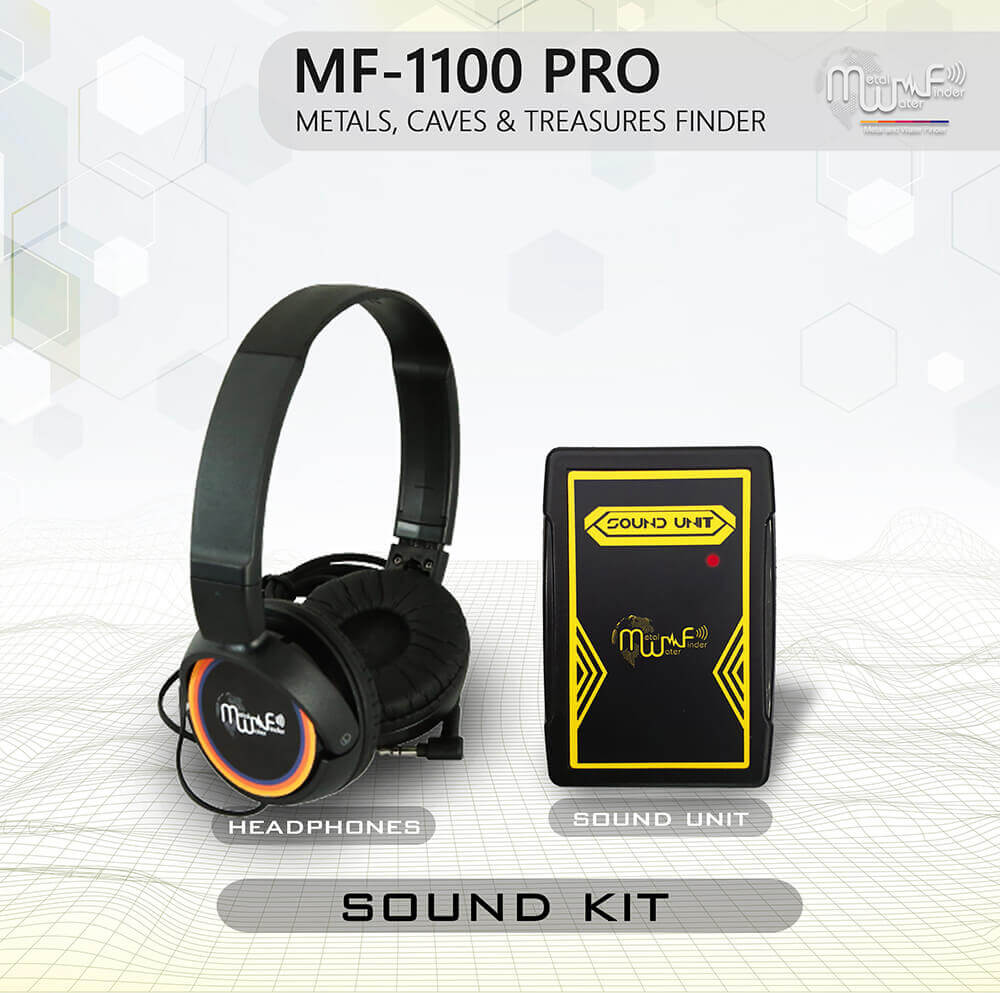

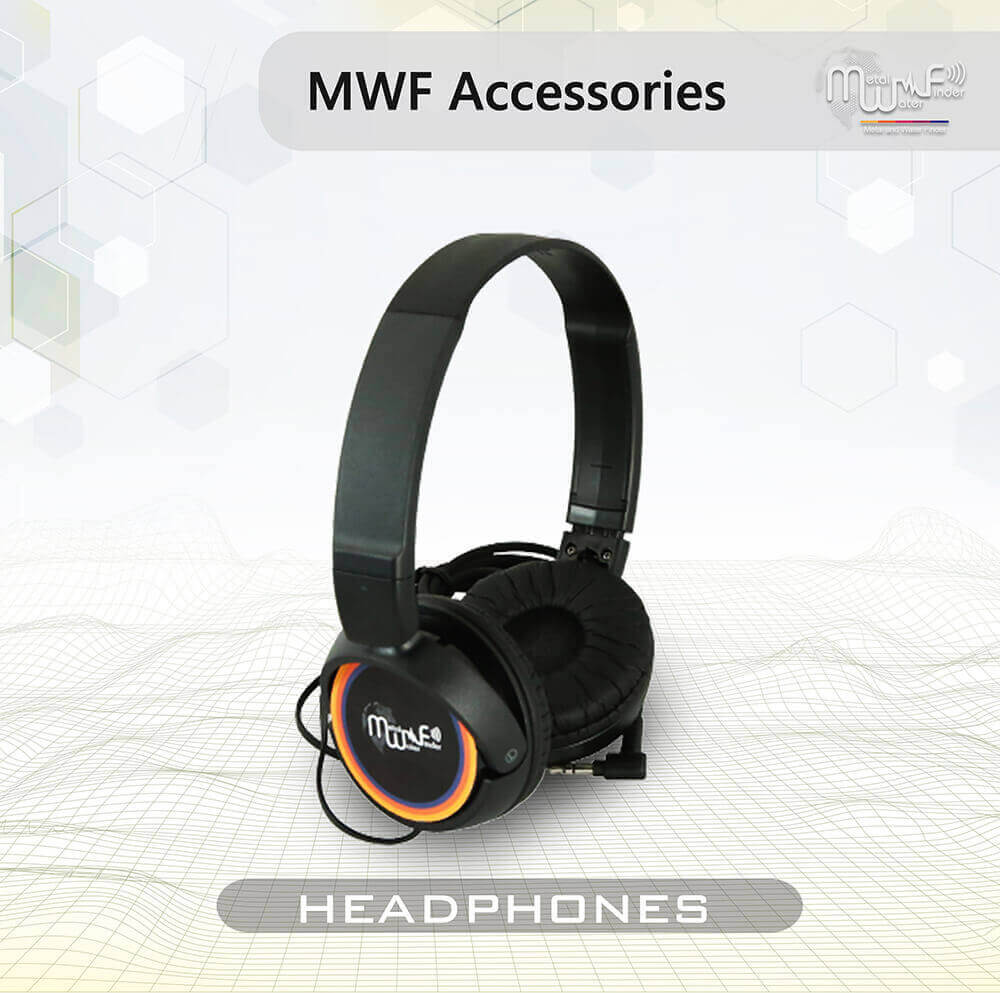

- Sound Unit + Headphones (Sound Kit)

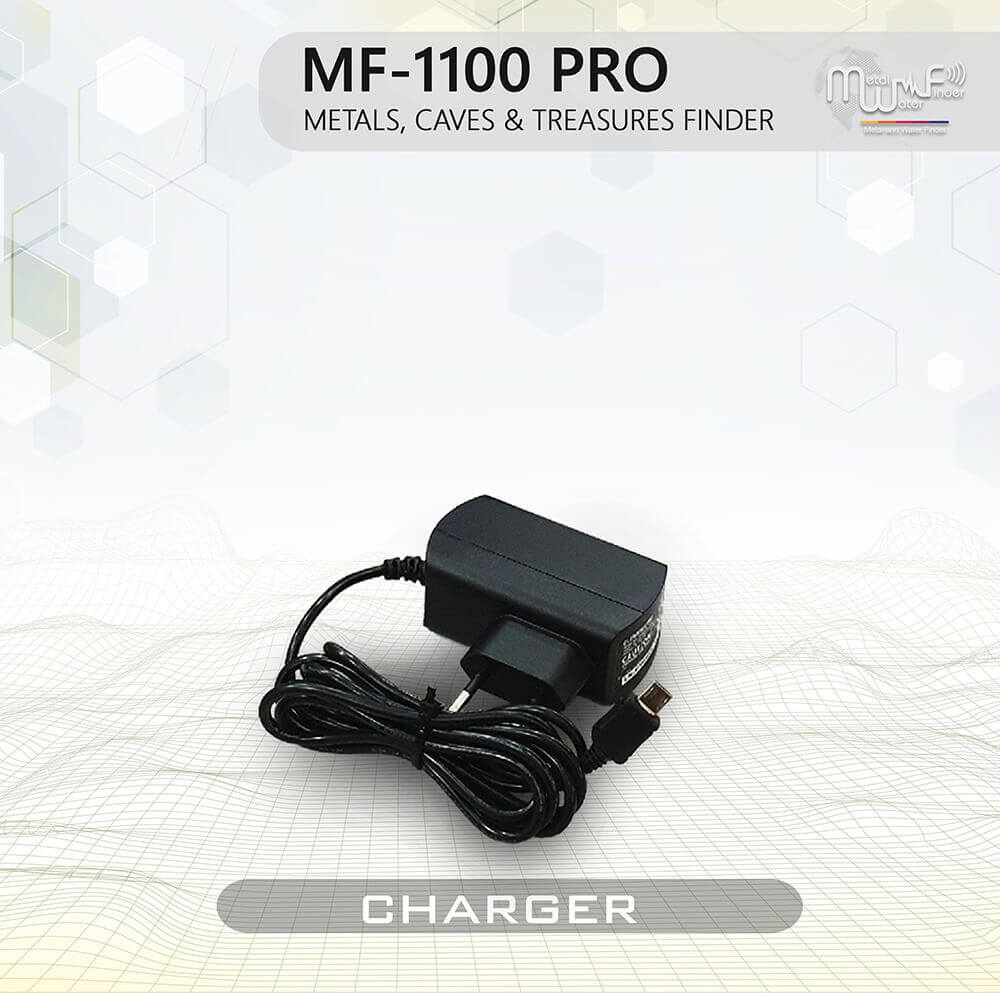

- Electric Charger.
- 3-Year Warranty Card.
- User’s Guide.
- Tutorial DVD.
Ground reiforcement unit
